Pinza de rolamento de papel de enganche elevador de clase 2

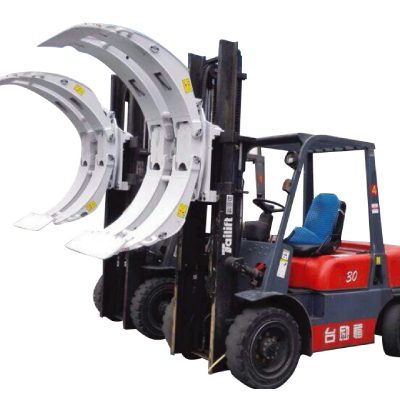

Pinza de rolos de papel capaz de eficiencia, seguridade, ningunha rotura de manipulación e apilado do rolo de papel, e rolo de suxeición de rotación continua de 360 graos, amplamente empregado en papel, cartón, embalaxe, impresión, portos e outras industrias.

Especificacións


Capacidade (kg)CatálogoClase de montaxeRango de rolos (mm)Lonxitude do brazo longo (mm)Lonxitude do brazo curto (mm)Espesor do brazo (mm)Centro de Gravidade Vertical (mm)Centro de Gravidade Horizontal (mm)Grosor efectivo (mm)Peso (kg)
1300SLZ-A0012330-115068551545330216138345
1200SLZ-A0022410-130079058045330222138345
2000SLZ-A / B0042/3250-130082457045345295/330210/250730/748
2000SLZ-A / B0052/3630-130082457045345290/325210/250720/738
2000SLZ-A / B0062/3350-160095677490345310/320210/250838/848
2000SLZ-A / B0072/3630-160095677490345308/318210/250826/834
1700SLZ-B0083680-18301130930112345458210/250950
1700SLZ-B0093380-18301130930112345460210/250965
2700SLZ-B / C0103/4520-130085059085445270/290210/250820/840
2700SLZ-B / C0113/4250-130085059085445270/290210/250835/855
2700SLZ-B / C0123/4560-152097069070445305/322210/250880/900
2700SLZ-B / C0133/4255-152097069070445305/322210/250898/918

Nota


1) Obter a capacidade de carga completa de carretilla elevadora / accesorios da fábrica de empilhadeiras

2) Segundo as necesidades dos usuarios, proporcione raios para adaptarse aos distintos requirimentos da explotación de rolos

3) Necesita unha carretilla elevadora para aumentar os 1 conxuntos de aceite adicionais.

Vídeos


Detalles rápidos


Lugar de orixe: Fujian, China (continente)
Nome da marca: HUAMAI
Uso: abrazadeira de vidro
Material: aceiro
Estrutura: F Clamp
Standard ou Non estándar: estándar
Nome do produto: pinza de rolamento de papel de montacargas de clase 2 de montacargas
Capacidade de carga: 1300kg
Rango de rolos: 330-1150mm
Clase de montaxe: II
Lonxitude do brazo longo: 685 mm
Lonxitude do brazo curto: 515 mm
Espesor do brazo: 45 mm
Centro de Gravidade Vertical: 330mm
Centro de gravidade horizontal: 216 mm
Peso: 345kg


A Class 2 forklift attachment rotating paper roll clamp is a specialized attachment designed for handling large rolls of paper. The clamp attaches to a Class 2 forklift, which is a forklift with a capacity of up to 4,000 pounds.

The rotating paper roll clamp consists of two arms that attach to the forks of the forklift and a rotating mechanism in the center. The clamp is designed to securely hold large rolls of paper in place, allowing the operator to easily pick up, move, and place the rolls. The rotating mechanism allows the operator to rotate the rolls to a desired position, making it easier to handle the rolls and reducing the risk of injury and damage to the load and the environment.

One of the main advantages of the Class 2 forklift attachment rotating paper roll clamp is its versatility. It can handle a wide range of large rolls of paper, making it a convenient accessory for a variety of material handling tasks. The rotating mechanism also allows the operator to easily place the rolls in the desired position, reducing the risk of injury to the operator and other workers.

Another advantage of the Class 2 forklift attachment rotating paper roll clamp is its efficiency. The clamp makes it easier to handle and transport the rolls, reducing the time and effort required to complete the task. This makes it more cost-effective and time-efficient, saving companies time and money in the long run.

In conclusion, the Class 2 forklift attachment rotating paper roll clamp is a useful tool for handling and transporting large rolls of paper. It is versatile, efficient, and cost-effective, and is an essential tool for companies that handle heavy loads on a regular basis.

,
