Venda de accesorios para cubetas DB-H

Realizing both forward and backward tipping through hydraulic cylinder,this bucket is suitable for loading or unloading loose materials,such as sand,coal,grains and concrete,ect.
A blade made of wear-resistant material is welded in the front of the bucket.
Surface treatment:painted or galvanized finish.

Especificacións

---

Tipo	Dimensión do busket exterior (mm)	Máx. Tamaño da bifurcación (mm)	Distancia de tenedor (mm)	Peso unitario (kg)	Capacidade (kg)	Volume (m3)	Espesor da placa do busket (mm)
DBHS-12	1100*570*1200	180*65	700	306.0	1000	0.50	5
DBHS-14	1100*570*1400	180*65	700	348.0	1000	0.55	6
DBHS-16	1100*570*1600	180*65	700	366.0	1000	0.65	6
DBHS-18	1100*570*1800	180*65	700	384.0	1000	0.75	6
DBHS-20	1100*570*2000	180*65	700	402.0	1000	0.80	6

Detalles rápidos

---

Lugar de orixe: Fujian, China (continente)
Nome da marca: HUAMAI
Model Number: DBHS-12
Product Name: Forklift hydraulic bucket
Outer busket dimension(mm): 1100*570*1200
Max. Fork SizeOuter busket dimension(mm): 180*65mm
Fork Distance (mm): 700mm
Unit Weight (kg): 306kg
Capacity (kg): 1000kg
Volume(m3): 0.50m3
Busket Plate Thickness (mm): 5mm

---

Forklift Slip-on dirt buckets type DB-M

Dirt Bucket Non Hydraulic DB-M for a cleaner work environment.
Dirt Buckets are especially useful for removing loose material from floors such as gravel, grain or coal.
A hardened steel wear edge ensures long life. Dumped via a simple mechanical lever
Suitable for most Forklifts without adaption
No Tools required for Fitting
Long reach Robust Design
Zinc Plated Finish

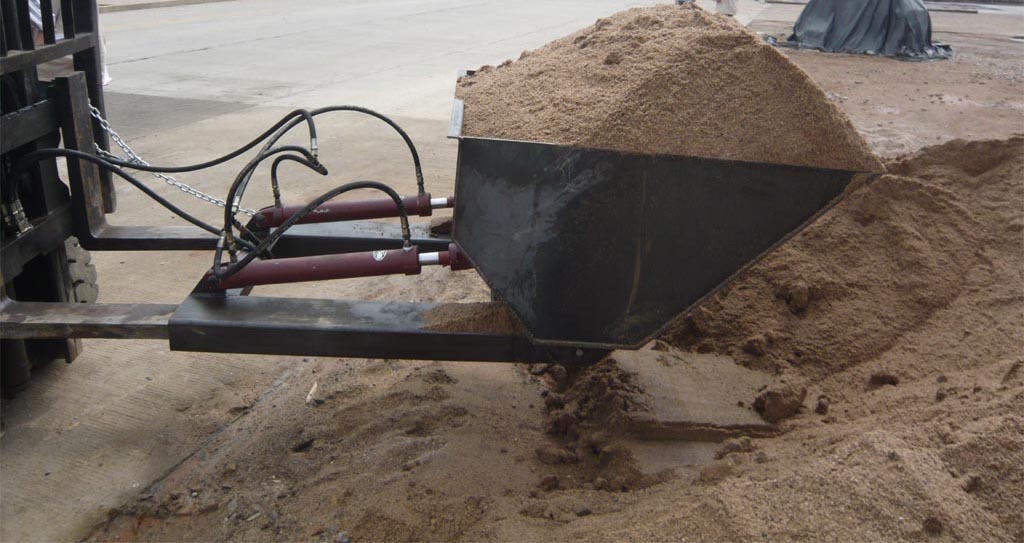

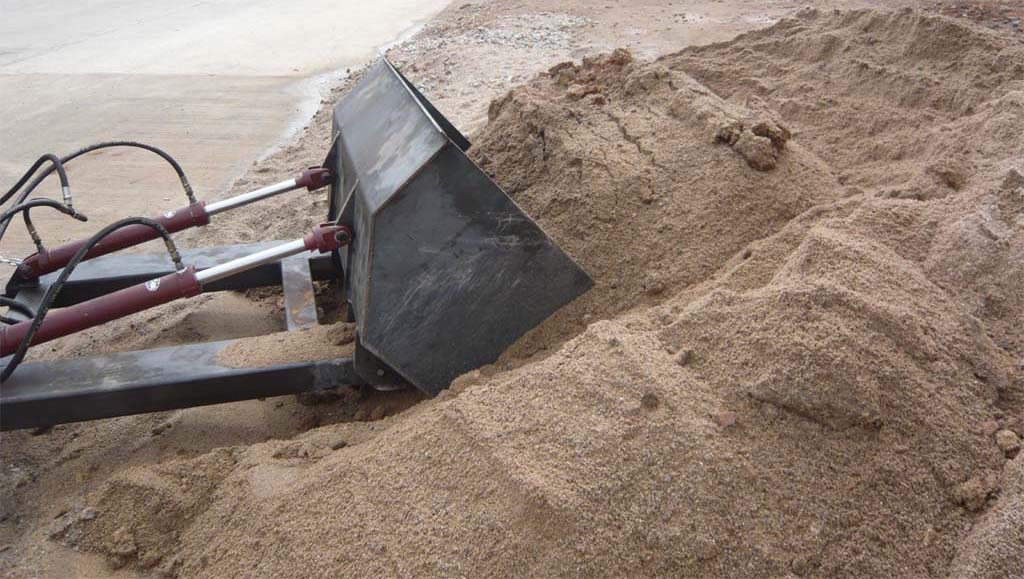

Hydraulic Dirt Bucket Forklift Attachment

DB-H slip-on Dirt Buckets allow for quick connection to the lift truck
O funcionamento hidráulico permite a inclinación total cara atrás facendo que este balde sexa axeitado para produtos líquidos
A unidade está equipada cun bordo de desgaste endurecido
Available in either painted

ESPECIFICACIÓNS:

Capacidade de volume: 0,22 m3
Carga de traballo segura: 500 kg
Ancho do cubo: 1200 mm
Tamaño do peto do garfo: 165 x 65 mm
Centros de peto de garfo: 635 mm
Peso unitario: 200 kg
