Forklift Bin Rotator - Fujian Huamai Machinery Co., Ltd.

Functions and Applications

Rolando 360°, forquillas rotativas para carretillas elevadoras.

Amplamente utilizado na industria alimentaria, industria química, industria de saneamento, industria de reciclaxe, industria de fundición de fundición, etc.

características

*Proven durable construction design, unique rotating drive system, meed the hight stength continuous operation.

* Un forte par de condución de rotación logrou a función de rotación estable e fiable.

* Motor hidráulico fixo con bloqueo hidráulico reversible, calquera posición de ángulo da función de bloqueo.

Vídeos

Opcións

-Ancho do carro opcional
- Garfos

Especificacións

Products Name	Capacidade @ Centro de carga	Nº de elemento	Clase de montaxe de camións / rotadores	Rotador / Tenedores Clase de montaxe	Ancho de carro (mm)	Bifurcación Espazo máximo (mm)	Espazo mínimo da bifurcación (mm)	Ancho total (mm)	Peso
Rotador	1700@500	RRB20D-001A	II	II	815	705	610	840	188
	1600@500	RRB20D-002A	II	II	815	705	610	840	254
	1600@500	RRB20D-003A	II	II	815	705	610	840	259
	1600@500	RRB20D-004A	II	II	815	705	610	840	268
	1600@500	RRB20D-005A	II	II	815	705	610	840	277
	2200@500	RRB20D-006A	II	II	815	705	813	840	300
	2200@500	RRB20D-007A	II	II	940	835	813	965	309
	3000@500	RRB30D-008A	II	II	940	855	813	965	313
	3000@500	RRB30D-008B	III	II	940	855	813	965	329
	3000@500	RRB30D-009A	II	II	1145	1060	813	1170	327
	3000@500	RRB30D-009B	III	II	1145	1060	813	1170	343
	3500@500	RRB35D-010B	III	III	1065	990	813	1090	390
	3500@500	RRB35D-011B	III	III	1220	1140	813	1245	406

Detalles rápidos

Lugar de orixe: Fujian, China (continente)
Nome da marca: HUAMAI
Número de modelo: Hydraulic-Rotator
Rolling: Over 360 degree
Mounting Class: II or III
Power: Hydraulic
Material: High Strenght Steel
Certificate: ISO9001/2000
Usage: Rotating forklift forks or bins
Pezas clave: clase mundial
Surface treatment: Paint
Cor: segundo requisitos
Garantía: 1 ano

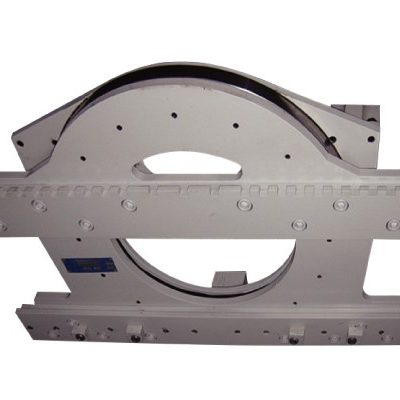

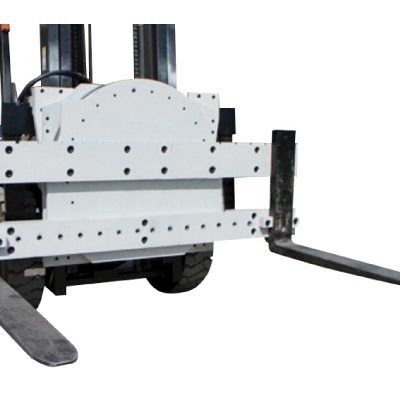

A forklift bin rotator is a type of forklift attachment used for handling and emptying large containers, bins, and hoppers. The bin rotator attaches to the forklift and rotates 360 degrees, allowing the operator to easily empty the contents of the container.

The bin rotator is designed to fit a variety of forklifts and can be attached by quick-release mechanisms or bolts, depending on the model. Once attached, the bin rotator can be easily raised and lowered by the forklift’s hydraulic system. The operator can control the rotation of the bin using a lever or a control panel, depending on the model.

One of the main advantages of the forklift bin rotator is its versatility. It can handle a wide range of containers, making it a convenient accessory for a variety of material handling tasks. The rotating feature also allows the operator to easily empty the contents of the container, reducing the risk of injury and damage to the load and the environment.

Another advantage of the forklift bin rotator is its efficiency. The rotator makes it easier to empty the contents of the container, reducing the time and effort required to complete the task. This makes it more cost-effective and time-efficient, saving companies time and money in the long run.

In conclusion, the forklift bin rotator is a useful tool for handling and emptying large containers. It is versatile, efficient, and cost-effective, and is an essential tool for companies that handle large containers on a regular basis.
