Pinzas multifunción para a elevación elevadora

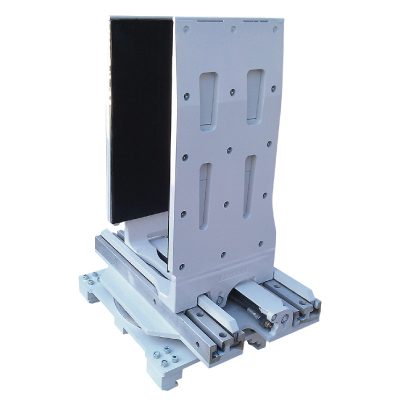

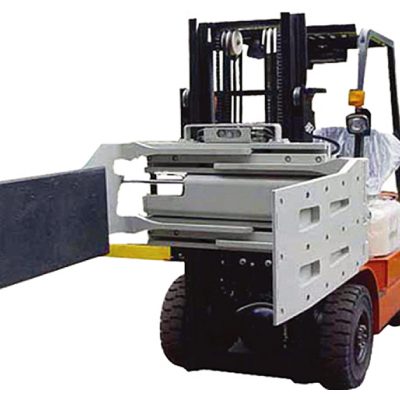

A sideshifting multi-purpose clamp is a type of forklift attachment that is used for handling and transporting a wide range of loads. It is designed to securely clamp onto the load and allow for easy and efficient handling and transportation. This type of clamp is commonly used in construction, manufacturing, and warehousing industries.

The sideshifting multi-purpose clamp works by clamping onto the load with hydraulic arms that can be adjusted to accommodate different sizes and shapes of loads. The hydraulic system is controlled by the operator, who can adjust the clamping pressure to ensure that the load is securely held in place. The clamp can also be shifted to the side, allowing the load to be easily positioned as needed.

One of the main advantages of the sideshifting multi-purpose clamp is its versatility. It can handle a wide range of loads, including pallets, drums, pipes, and more. It can also be easily attached and detached from the forklift, making it convenient for use in different material handling scenarios.

Another advantage of the sideshifting multi-purpose clamp is its ability to handle heavy loads. It allows for safe and efficient handling of heavy loads, reducing the risk of injury and damage to the load and the environment. The sideshifting feature also makes it easier to position the load in tight spaces or areas with limited access.

In conclusion, the sideshifting multi-purpose clamp is a useful forklift attachment for handling and transporting various types of loads. It is versatile, efficient, and cost-effective, and is an essential tool for companies that handle heavy loads on a regular basis.

características


· Proven durable T-beam arm aluminum frame construction
· Excellent operation field for vision.
· Regenerative hydraulic valving for optional arm speed
· Superior arm-slide bearing for extended service life
· Vulcanized rubber pads design, economically.

Nota


· Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
· Two sets additional oil circuit and magnetic valve required on forklift.
· Open arm range is the space between two arms tip.
· Arm thickness "C" is the space size required for practical work, is different from the actual arm plate thickness
· Please contact the sales from HUAMAI

Vídeos


Especificacións


Tipo

Capacity @Load Center /mm

Clase

Opening Range /mm

Arm Height A/mm

Arm Length B/mm

Frame Width D/mm

Arm Thick- ness C/mm

Overall Height H/mm

Weight /kg

Effective Thick- ness /mm

MCS15D- 001A

1400@ 500

II

420-1570

455

955

865

55

665

465

175

MCS15D- 002A

1400@ 500

II

520-1720

415

1220

865

70

665

485

195

MCS15D- 003A

1900@ 500

II

520-1750

600

1015

940

75

665

475

175

MCS15D- 004A

1900@ 500

II

560-1760

455

955

940

55

665

475

175

MCS15D- 005A

1900@ 500

II

520-1720

415

1220

940

70

665

495

195

MCS15D- 006A

1900@ 500

II

560-1800

460

750

940

55

665

356

180

MCS15D- 007A

1900@ 500

II

550-1800

460

905

940

55

665

386

180

MCS15D- 008B

2700@ 500

III

600-1950

455

750

1015

60

730

484

215

MCS15D- 009A

2700@ 500

II

600-1900

455

955

1015

60

730

542

205

MCS15D- 009B

2700@ 500

III

600-1900

455

955

1015

60

730

543

215

MCS15D- 010A

2700@ 500

II

595-1940

455

1160

1015

65

730

603

205

MCS15D- 010B

2700@ 500

III

595-1940

455

1160

1015

65

730

604

215

Fluxo e presión hidráulica


Modelo

Min. Hydraulic Flow (L/min)

Rec. Hydraulic Flow (L/min)

Max. Hydraulic Flow (L/min)

Min. Hydraulic Pressure (Bar)

Max. Hydraulic Pressure (Bar)

MCS20D

15

25

25

35

160

MCS30D

15

40

40

35

160

Opcións


· Clamp arm height and large extension
· Left and right clip arm independent movement type
· 180 degree rotation stopping mechanism

Aplicación


Efficiently and economically handle nearly any types of paper carton, wooden carton, metal carton and baled products . Including tobacco, newsprint, chemical fiber, workshop and port. High efficiency and economy to handle in without work platform

Detalles rápidos


Lugar de orixe: Fujian, China (continente)
Nome da marca: HUAMAI
Product Name: Sideshifting multi-purpose clamp
Type: MCS15D- 001A
Clase de montaxe: II
Opening Range: 420-1570mm
Arm Height A/mm: 455mm
Arm Length B/mm: 955mm
Frame Width D/mm: 47mm
Arm Thick-ness C/mm: 55mm
Overall Height H/mm: 665mm
Effective Thickness(mm): 175mm


, , , ,
