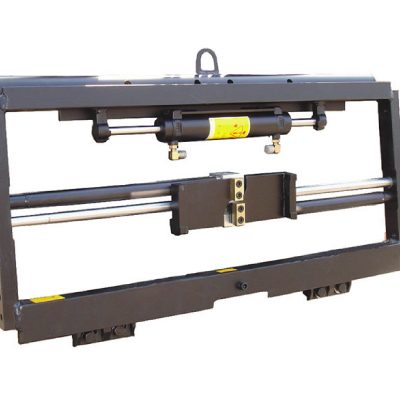

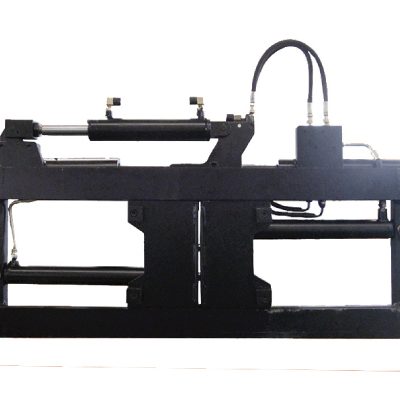

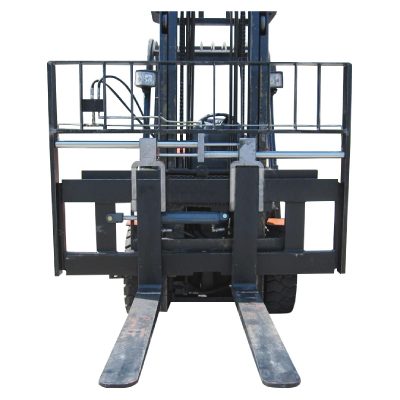

Instalación de posicionadores de horquilla de horquilla hidráulica

características


The lateral oil cylinder piston rod , the integral structure is simple, easy processing, maintenance;
O cilindro de aceite controlable pode estar equipado coa válvula de aceleración.
Os seladores adoptan produtos NOK, a calidade é fiable.
Mechanical performance:fork USES the fine steel,is not easy to damage, by supporting rod coupling,
compact structure, light weight,easy installation and pallet fork closed time distance is smaller.

Especificación


Capacidade /
Centro de carga
(kg @ mm)

Modelo

Clase de montaxe

Adjust Range Of The Forks

(mm)

Min Width Of The Bar Carriage

(mm)

Suitable Fork Width(mm)

Peso

(kg)

Grosor efectivo

ET (mm)

Vertical
Centro de Gravidade

CGV
(mm)

Horizontal
Centro de Gravidade

HCG
(mm)

1800@500

FP18G-A2

II

28-860

895

100

72

68

218

31

2500@500

FP25G-A4

II

28-930

940

100/122

78

68

218

31

3000@500

FP30G-B3

III

28-990

970

125

90

68

275

31

Nota


Obter a capacidade real do empilhadeira e accesorios do fabricante de carretillas elevadoras,
Requírense dous conxuntos de circuítos de aceite adicional na carretilla elevadora
Fork adjustable range :its minimum valve is inner space when forks close. Its maximum ranges is outer space when the forks opens. Sideshit ranges:+/-100mm.
Póñase en contacto coas vendas de LANDHONG.

Aplicación


Applicable to the material distribution, warehousing and manufacturing industries, make the forklift
driver accurately adjust the spacing of the forks with good and wide vision

Vídeos


Detalles rápidos


Lugar de orixe: Fujian, China (continente)
Nome da marca: HUAMAI
Model Number: FP30G-B3
Product Name: Fork positioner
Type: FP30G-B3
Clase de montaxe: III
Adjust Range Of The Forks (mm): 28-990mm
Min Width Of The Bar Carriage (mm): 970mm
Suitable Fork Width(mm): 125mm
Weight: 90kg
Effective Thickness(mm): 68mm
Horizontal Center of Gravity (mm): 31mm
Vertical Center of Gravity CGV (mm): 275mm




, , , ,
