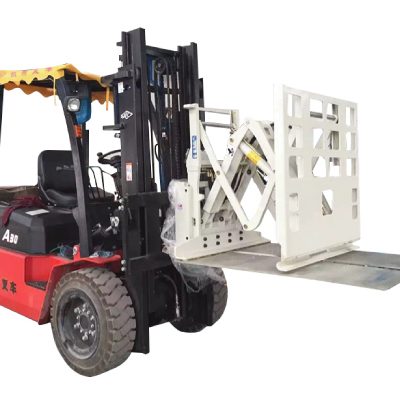

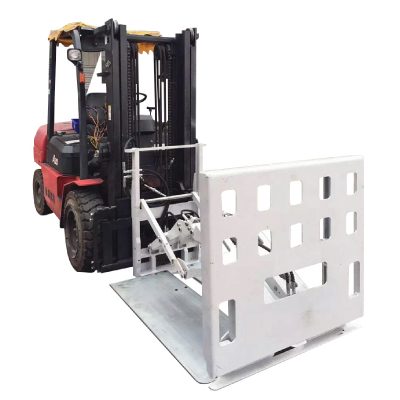

Venta de Carretillas Push Pull

Aplicación:

---

Push/Pull is rugged, heavy-duty attachments for high cycle slipsheet applications requiring high productivity with low maintenance. Products typically handled with a push/pull include: bagged products, cased products, glass etc.

Características:

---

l High visibility pantograph, gripper jaw and faceplate

l Full bottom taper/adjustable platens

l Chamfered platen corners and gripper jaw design

l High strength, rigid pantograph for safe load packing

l Protected hydraulic, simplified hydraulic circuit.

Vídeos

---

Detalles rápidos

---

Estado: Novo
Lugar de orixe: Xiamen, China (continente)
Nome da marca: HUAMAI
Type: Powered Pallet Truck, pallet retaining
Power Souce: Motor Diesel
Lonxitude da tenedor: 1070mm
Certificación: CE / ISO9001
Servizo posvenda: Enxeñeiros dispoñibles para maquinaria de servizo no exterior
Loading Capacity: 2000kg
Application: Diesel, battery , Gasoline Forkilift truck
Color: TBD
Mounting clas: ISO 2
Platen size: 455x1220mm
Min Truck Carriage width: 915mm
Outside platen spacing: 1015mm or 1220mm

---

Función e Aplicacións

Can pull and push light goods pack with the help of sliding plate instead of pallet. (eg.cardboard) safely and efficiently.Only use sliding plate to realize loading, stacking, and reuse cardboard (only for Sliding Plate Reatinable Model ).It can greatly improve production efficiency,saving the cost .

Pode usarse amplamente en electrónica, alimentación, industria lixeira e outras industrias.

características

• Estrutura integrada razoable, amplo horizonte, flexible e fácil de operar;

•Loading and unloading goods can be done without pallets, and the application of low cost slip sheet meets the storage room of the pallets.

•The durable and smooth alloy fork plate can avoid damage to the connection part of the sliding plate during operation.

• O deseño razoable de elementos hidráulicos fan que o sistema hidráulico teña boa protección e longa vida útil.

• Todos os materiais están feitos en aliaxe de alta resistencia.

•An oilfree lubrication system is applied to each joint ensures better protection of the pins and axles, without maintenance.

Observacións:

1. Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.

2. Matching this attachment requires 1 more oil circuitsor 2 more oil circuits and 2 more electric circuit for the forklift.

3. QPA model with solenoid valve (if not specified notice, the working voltage is 12 v), please pay attention to forklift system voltage.

4. The models above are fast loading mounted pushpull type, if need standard fork please buy addtionally.

5. Segundo as necesidades do cliente, pódese deseñar e proporcionar un modelo especial.

As nosas vantaxes

Why choose us as reliable supplier or work as local dealer with us？

1. Equipo técnico experimentado, servizo máis profesional

HUMAI is made up of a team of members who have years of experience with European forklift trucks and its attachments.

2. Amplia gama de produtos, proporciona unha solución total

HUAMAI has grown rapidly into a sizeable company specialized in producing a comprehensive range of hydraulic and mechanical attachments.

The major categories of hydraulic attachments include rotating type, sliding arm type, sideshifting/ hinged type, special purpose type and others.

3. Apoio prioritario, se axencia / distribuidor

Se vostede é un distribuidor local, pode obter o apoio da política do axente HUAMAI, incluíndo un tempo de entrega rápido, prezo competitivo e soporte de accesorios, etc.

4. Fábrica propia, prezo competitivo

A nosa fábrica abrangue unha superficie de 10.000 metros cadrados, totalmente equipada con modernos equipos de fabricación e instalacións. A produción a escala e ningún intermediario aforrará o custo de compra.
